Töökoormus | 15 T | 20 T | 36 T | 50 T |
Katkemiskoormus | 150 kN | 200 kN | 360 kN | 490 kN |

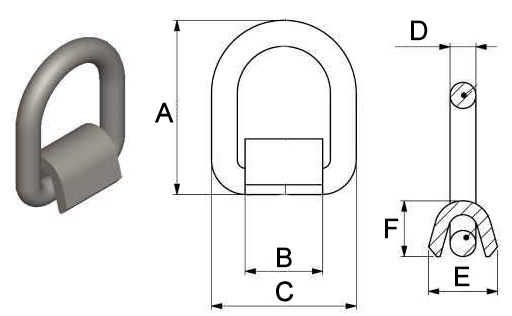

A | 100 mm | 116 mm | 123 mm | 133 mm |
B | 45 mm | 65 mm | 120 mm | 130 mm |
C | 84 mm | 116 mm | 200 mm | 230 mm |
D | 15 mm | 18 mm | 23 mm | 26 mm |
E | 40 mm | 54 mm | 76 mm | 88 mm |
F | 32 mm | 36 mm | 38 mm | 46 mm |
Kaal | 0,6 kg | 1,3 kg | 2,65 kg | 4,2 kg |
