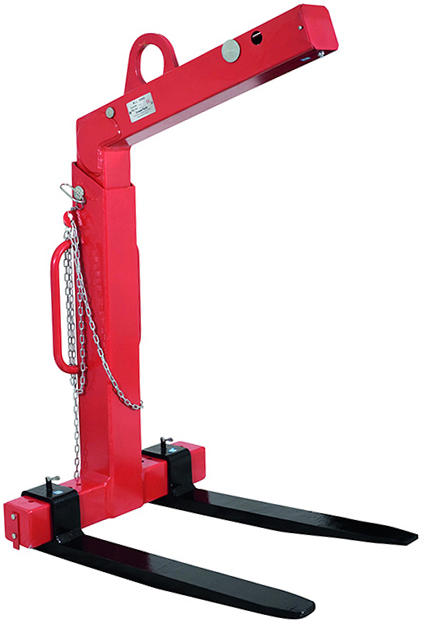

Usage: Lifting fork is used pallet lifting in locations, which the forklift cannot be accessed.
The first two lifting forks in the table are self-balancing.
The recommended lifting position is from the 120cm side part of the euro base, not 80cm from the side part!
Because the length of the fork legs is 1m, then 20cm fits through the base.
ABF – For raising Aerock/Baurock and Fibo bases
Lifting fork 1500kg package dimensions: 193cm x 103cm x 41cm
Click on image, to see the bigger picture..
| Product name, tonnage | Height adjustment | Paw range | Length of paws | For raising Aerock/Baurock and Fibo bases |
Weight |
| Lifting fork 1500 kg | 1300 mm – 2000 mm | 350 mm – 900 mm | 1000 mm | It is suitable if you lift the euro base from the 120 cm side. | 165 kg |
| Lifting fork 3000 kg | 1300 mm – 2000 mm | 450 mm – 900 mm | 1000 mm | It is suitable if you lift the euro base from the 120 cm side. | 280 kg |
| Lifting fork 1500 kg ABF | 1300 mm – 2000 mm | 350 mm – 900 mm | 1000 mm | Fits. | 200 kg |
| Lifting fork 3000 kg ABF | 1300 mm – 2000 mm | 450 mm – 900 mm | 1000 mm | Fits. | 500 kg |
