Winch rope details:
Product name | Breaking load | 1m wirerope weight |
Winch-rope 4mm 6 x 19 + FC | 0,89 t | 0,06 kg |
Winch-rope 5mm 6 x 19 + FC | 1,39 t | 0,09 kg |
Winch-rope 6mm 6 x 19 + FC | 2,16 t | 0,13 kg |
Winch-rope 8mm 6 x 19 + FC | 4,22 t | 0,24 kg |
Winch-rope 10mm 6 x 36 + FC | 6,66 t | 0,37 kg |
Winch-rope 12mm 6 x 36 + FC | 9,5 t | 0,53 kg |
Winch-rope 14mm 6 x 36 + FC | 13 t | 0,72 kg |
Winch-rope 16mm 6 x 36 + FC | 16,9 t | 0,94 kg |
Winch-rope 18mm 6 x 36 + FC | 21,4 t | 1,19 kg |
Winch-rope 20mm 6 x 36 + FC | 26,4 t | 1,47 kg |
Winch-rope 22mm 6 x 36 + FC | 31,9 t | 1,78 kg |
Winch-rope 24mm 6 x 36 + FC | 38 t | 2,11 kg |
Making an inquiry or order, please write the desired length as well!
—
Such a winch cable is available (ask for an offer):

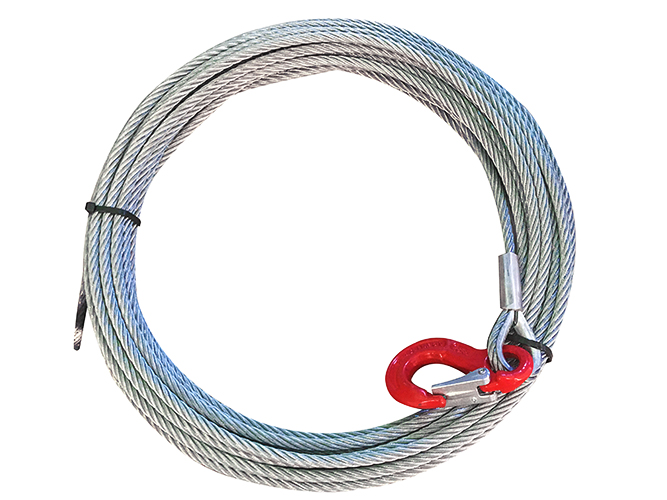

Vintsitross 20mm 6×36+FC L= 68m (loop pressed with kouss at one end + 5,3T closing hook)
